Product Specifications OLD
The CONTRAfluranTM canister

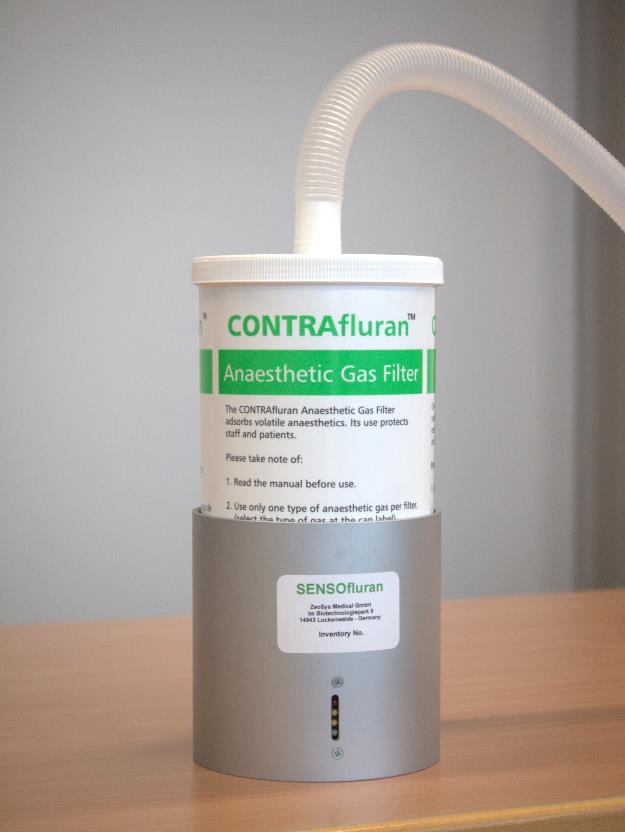

The SENSOfluran™ sensor2
- The sensor is both a holder and a sensor. It clamps on to anesthesia machines and holds the canister.
- The gas detector at the bottom of the sensor unit detects gas flow coming out of the canister as it fills.
- An LED light panel indicates when the canister is full and needs to be changed.
SENSOfluran™ is intended to remove fluorinated halocarbons (such as sevoflurane, desflurane, and isoflurane).2 Use SENSOfluran PLUS to stay connected to the anesthetic gas scavenging system (AGSS) or if nitrous oxide will be used in the operating room.4
The sensor indicator system2
GREEN LED (bottom):
Indicates the canister is ready to capture expired gas and has sufficient free capacity.
YELLOW LED (second from bottom):
Indicates the capacity of the canister is diminishing. But the concentration of the anesthetic gas in the filtered exhausted air lies within the MAK accepted values. A canister change is recommended when the second yellow LED lights up.
TWO YELLOW LEDs (middle two):
Indicates the maximum capacity of the filter is approaching. The canister should be replaced as soon as possible.
RED LED (top):
Indicates the maximum capacity of the filter is reached. The canister must be replaced.
Technical data2
CONTRAfluran™-Anesthetic gas canister
| Temperature |
|
Relative humidity |
|
| Storage capacity |
|
Flow-resistance |
|
| Height |
|
Diameter |
|
| Weight |
|
Volume |
|
SENSOfluran™-Fill level control unit
| External material |
|
||
| Temperature |
|
Voltage |
|
| Weight |
|
Appropriate use
The CONTRAfluran™-Anesthetic gas canister is intended to remove fluorinated halocarbons (such as sevoflurane, desflurane, and isoflurane) in operation rooms, intensive care units, and mobile or ambulatory treatment areas, regardless of the type of exhaust device used. The CONTRAfluran™-Anesthetic gas canister is designed exclusively for these applications.
The SENSOfluran™-Fill level control unit must only be used in combination with the CONTRAfluran™-Anesthetic gas canister during sedation and operation of patients using volatile anesthetics.
CONTRAfluran™ and SENSOfluran™ are not intended for use with nitrous oxide or other anesthetic gases!
Please note that the canister and fill level control unit must only be used by qualified personnel.
For the safe and proper use of the devices mentioned herein, please refer to the complete Instructions for Use.
